Maintaining the optimal performance of an HVAC system is crucial for both residential and commercial settings. One key aspect of achieving this optimal performance is understanding and managing superheat, a measure of how much a refrigerant is heated above its boiling point. Proper management of superheat is essential for ensuring that the system operates efficiently and effectively, preventing issues such as reduced cooling capacity, increased energy consumption, and potential system damage.
For technicians and homeowners alike, having the right tools can make a significant difference in maintaining and troubleshooting HVAC systems. A printable superheat charging chart is one such tool that has gained popularity due to its simplicity and effectiveness. This chart provides a quick reference guide for determining the correct superheat values based on the outdoor temperature and the type of refrigerant used, making it an indispensable resource for anyone involved in the installation, maintenance, or repair of air conditioning and refrigeration systems.
The Complete Guide To R404 PT Chart And Pressure Temperature Values American Mortuary Coolers Equipments
Understanding Superheat and Its Importance
Superheat is a critical parameter in the operation of vapor-compression refrigeration systems. It represents the amount of heat added to the refrigerant vapor above its saturation temperature at a given pressure. Understanding superheat and its importance involves recognizing how it affects system performance, efficiency, and longevity. Too little superheat can lead to liquid refrigerant entering the compressor, causing damage, while too much superheat indicates inefficient operation and potential overheating of system components. A printable superheat charging chart helps in striking the right balance.
The Complete Guide To R404 PT Chart And Pressure Temperature Values American Mortuary Coolers Equipments
How to Use a Printable Superheat Charging Chart
Utilizing a printable superheat charging chart is relatively straightforward. First, identify the type of refrigerant your system uses and the current outdoor temperature. Then, refer to the chart to find the corresponding superheat value. This value is used to adjust the system’s charging to ensure that it operates within the recommended superheat range. The chart essentially serves as a lookup table, streamlining the process of determining the optimal superheat setting without the need for complex calculations or specialized equipment.
Benefits of Implementing a Superheat Charging Chart
The benefits of implementing a superheat charging chart are multifaceted. For one, it ensures that the HVAC system operates at peak efficiency, which translates to lower energy bills and a reduced carbon footprint. Secondly, by maintaining the system within the optimal superheat range, the risk of premature wear and tear on components is minimized, leading to longer system lifespan and fewer repair needs. Additionally, a well-maintained system provides better cooling performance, enhancing comfort and satisfaction for occupants.

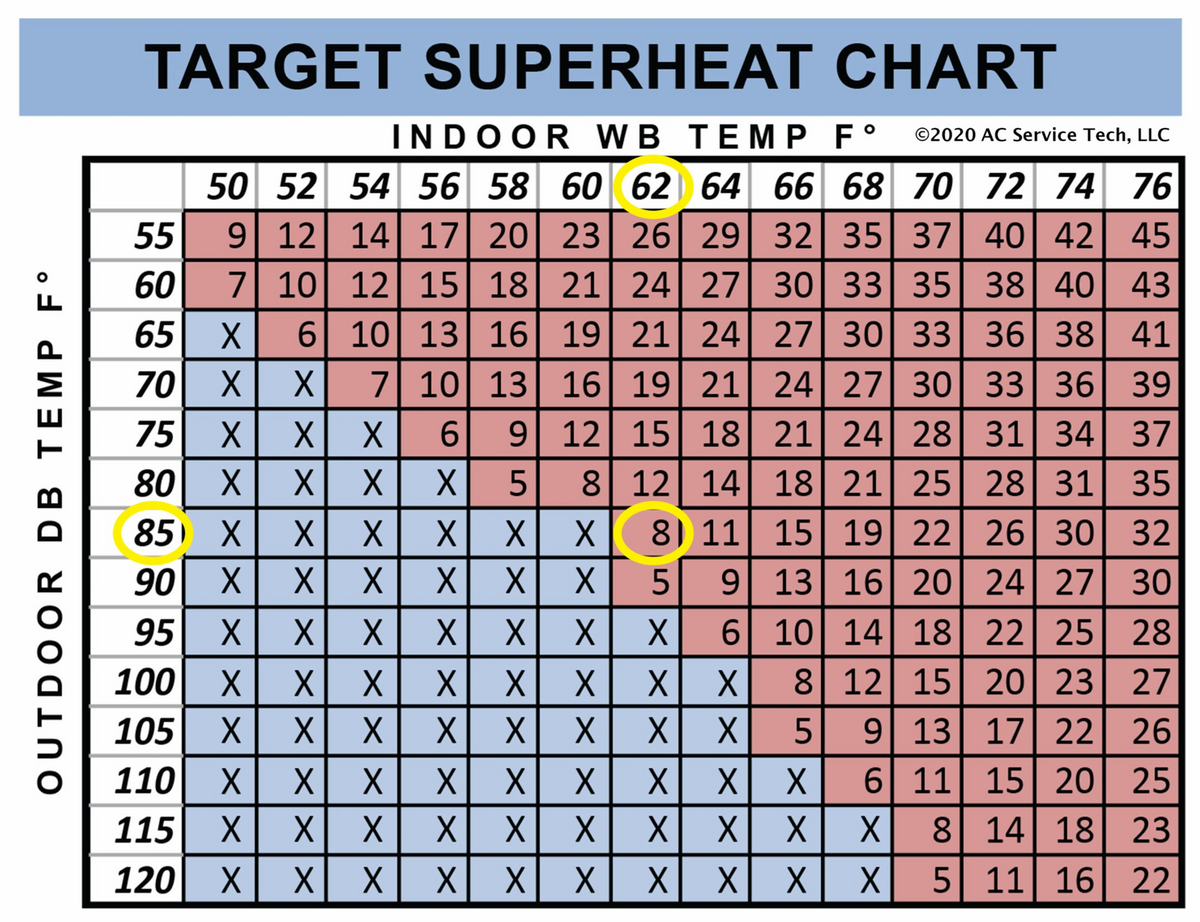

Discover 7 Ha Vokk And Refrigeration And Air Conditioning Ideas Hvac Air Conditioning Air Conditioner Maintenance Air Conditioning Maintenance And More
In conclusion, a printable superheat charging chart is a valuable resource for anyone involved in the maintenance, repair, or operation of HVAC systems. Its ability to simplify the process of managing superheat ensures that systems run efficiently, effectively, and safely. Whether you’re a professional technician or a DIY enthusiast, incorporating this tool into your arsenal can lead to significant improvements in system performance and overall satisfaction. With its ease of use and the benefits it offers, a printable superheat charging chart is an essential component of modern HVAC management.
Discover 7 Ha Vokk And Refrigeration And Air Conditioning Ideas Hvac Air Conditioning Air Conditioner Maintenance Air Conditioning Maintenance And More

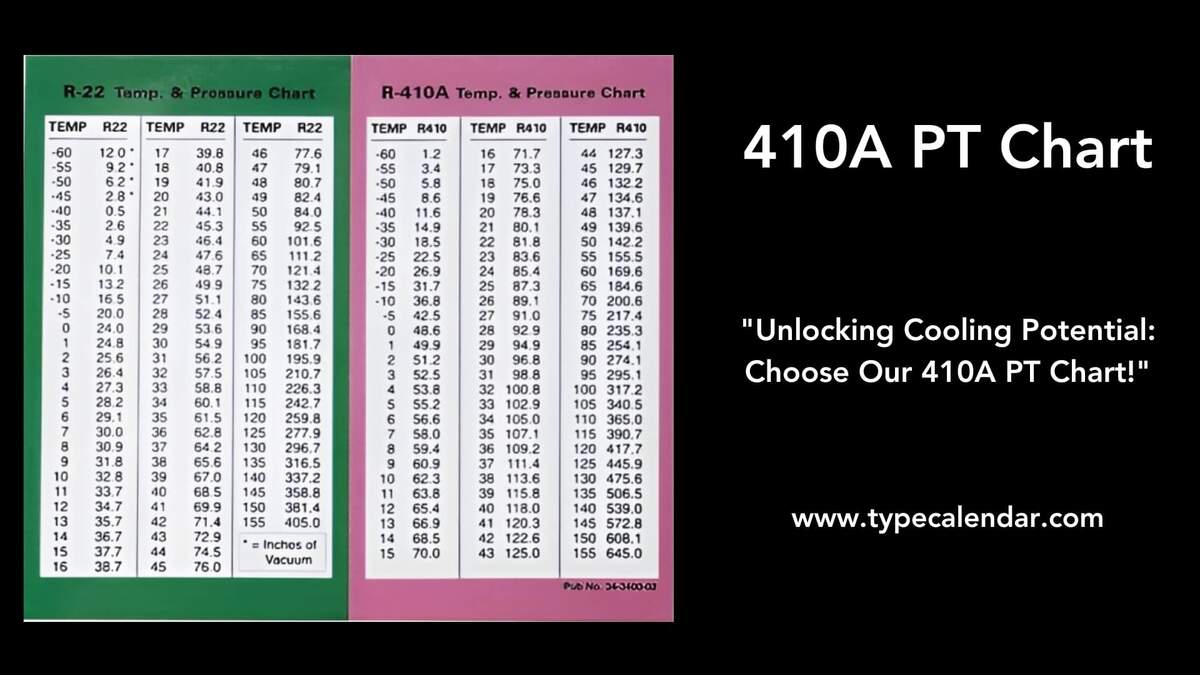

Free Printable R410A Pressure Temperature Chart PDF
